Swiss Lock®
When it comes to safe and sustainable construction solutions, the Swiss Lock®, developed by B+BTec, is a name that stands for quality and reliability. This special steel anchor offers the security you need for complex construction projects, such as tunnel construction.
With its unique design and proven performance, the Swiss Lock® from B+BTec is the ideal choice for anyone seeking maximum safety and long-term stability in challenging construction conditions. Discover now!

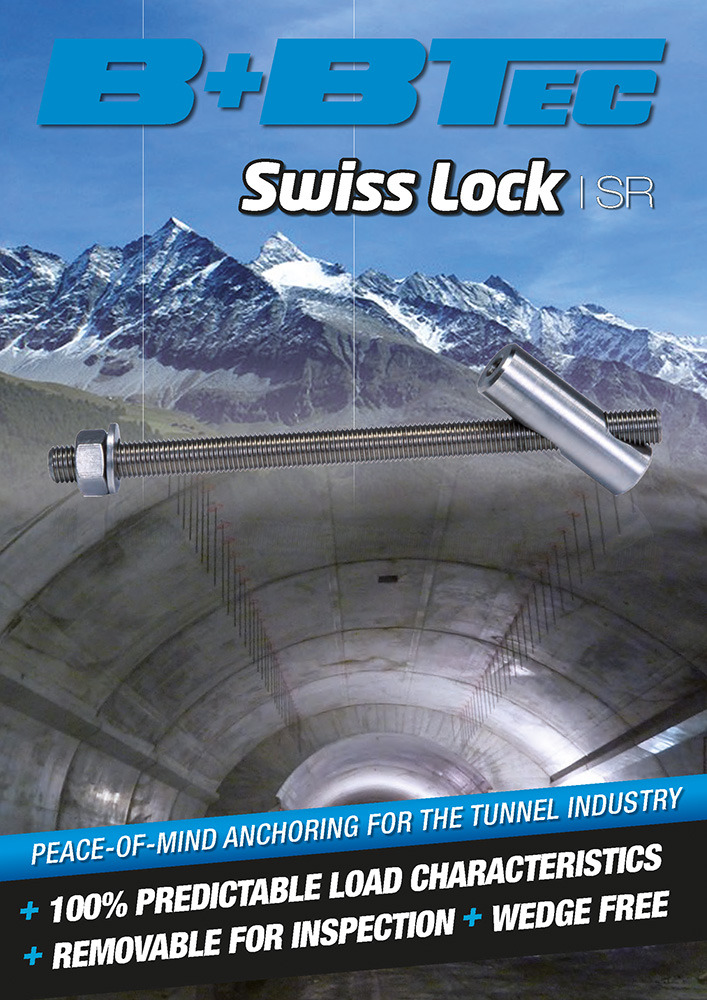

Download the English brochure here
-
Swiss Lock®, Steel 8.8 White Zinc PlatedWedge Free Steel Anchor for the most Critical Applications in Cracked and Non-Cracked Concrete.
-
Swiss Lock SR®, Stainless Steel A4-80Wedge Free Steel Anchor for the most Critical Applications in Cracked and Non-Cracked Concrete.
-
Swiss Lock SR®, HCR 1.4529Wedge Free Steel Anchor for the most Critical Applications in both Cracked and Non-Cracked Concrete.
This is the Swiss Lock® from B+BTec
The Swiss Lock® is a steel anchor specially designed by B+BTec for use in critical situations. Think, for example, of anchoring heavy structures in concrete, where it is important to prevent cracks.
The unique feature of this anchor is its tension-free operation. This means the steel anchor secures itself without placing additional stress on the concrete, preventing cracks and damage.
The Swiss Lock® is not just a standard product. It was developed after years of research and experience and is patented by B+BTec. This means the design is exclusive and only available from us.
Thanks to this design, this steel anchor is highly reliable and can be used in all types of concrete, whether it's already cracked or undamaged.
The reliability of using the Swiss Lock®

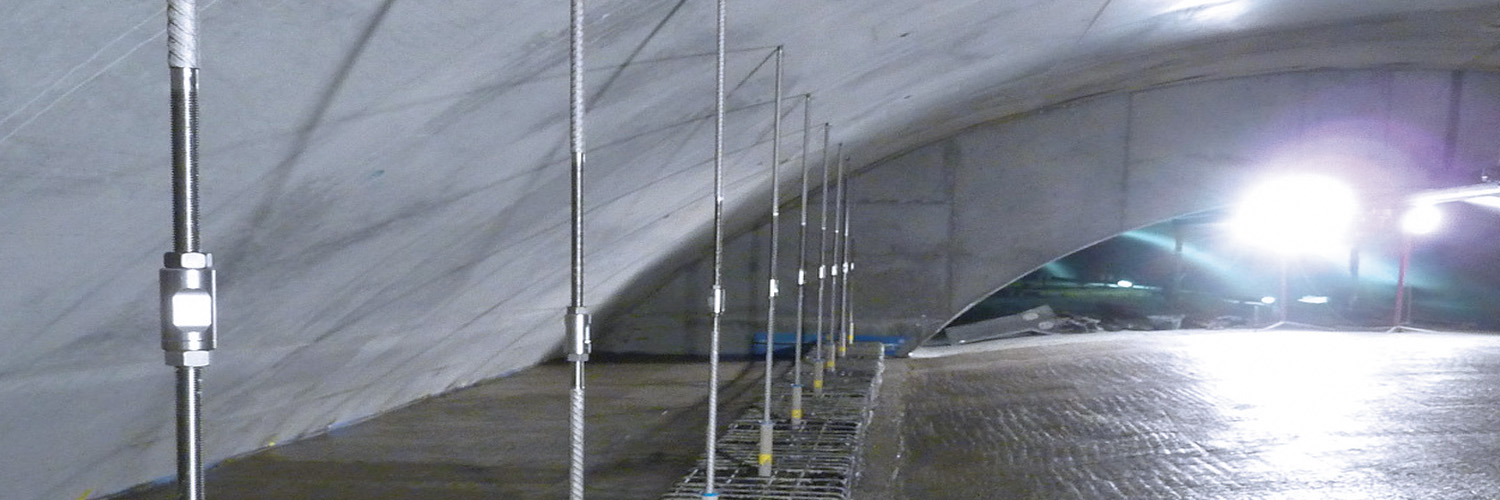

The steel anchor we designed has already proven its value in tunnel construction, one of the most demanding sectors of construction. Safety is paramount in tunnel construction.
B+BTec has used this steel anchor in several tunnel construction projects to safely anchor tunnel ceilings and fire dampers. The Swiss Federal Road Administration (ASTRA) even recommends our Swiss Lock as a proven system for anchoring key components in tunnels.

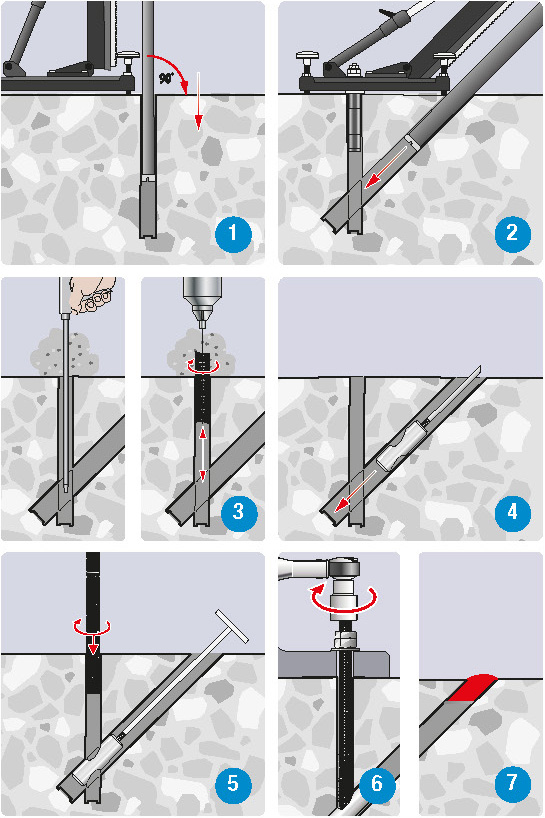

Because every tunnel is different, at B+BTec we design and manufacture custom drilling systems for each project. This allows us to install this steel anchor quickly and efficiently, regardless of the specific requirements of the project.
Choose from a high-quality range at B+BTec
Our range includes various steel anchors for diverse conditions and needs:
- Swiss Lock®, steel 8.8, electrolytically galvanized: For extra protection against rust, ideal for both cracked and uncracked concrete.
- Swiss Lock®, stainless steel A4-80: Stainless steel for optimal protection against moisture and corrosion, suitable for applications where rust is a risk.
- Swiss Lock®, HCR 1.4529: Designed for extreme conditions, such as maritime environments or chemical plants, with maximum resistance to corrosion and exhaust fumes.
B+BTec: Your partner in success
If you're looking for a reliable partner for your construction projects, B+BTec is the right place for you. With over 40 years of industry experience, we have the knowledge and expertise to help you make your projects a success.
The Swiss Lock® can be easily removed at any time for periodic inspections. After inspection, the same Swiss Lock can be reused without any problems.
