Swiss Lock SR®, Stainless steel A4-80

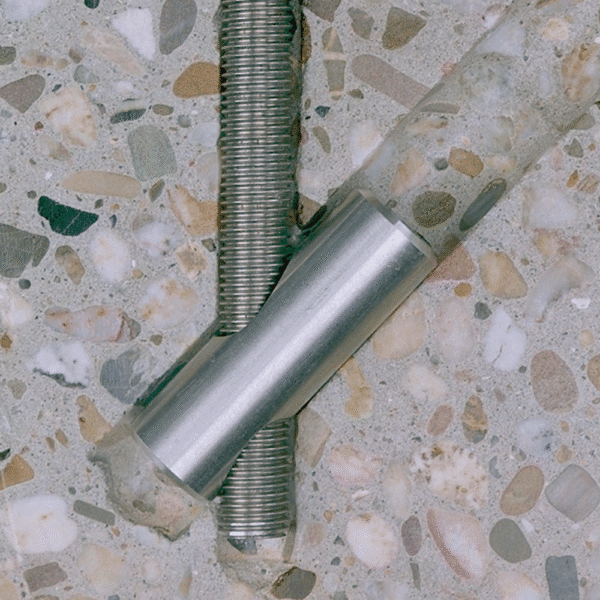

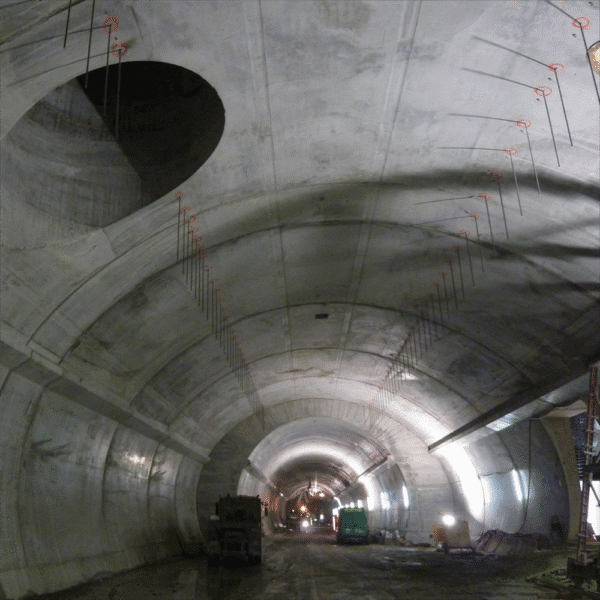

The Swiss Lock (SR) is a Wedge Free Steel Anchor for the most Critical Applications in Cracked and Non-Cracked Concrete.
- Removable for Inspection
- Relocatable
- Highest Level of Reliability & Predictability
- Load Caracteristics Identical to Cast-in-Place Anchors
Choose size & order
Product dimensions
| Anchor Size | Da | [mm] | M12 | M16 | M20 | M24 | M30 |
| Anchor Rod Length | La≥ | [mm] | 240 | 300 | 360 | 420 | 515 |
| Diameter Lock | Dr | [mm] | 20 | 25 | 30 | 40 | 50 |
| Length Lock | Lr | [mm] | 61 | 75 | 92 | 120 | 150 |
| Internal Thread Diameter | Di | [mm] | M10 | M10 | M10 | M10 | M10 |
Installation Dimensions
| Anchor Size | Da | [mm] | M12 | M16 | M20 | M24 | M30 |
| Vertical Hole Diameter | d0 | [mm] | 14 | 18 | 22 | 28 | 35 |
| Vertical Hole Depth | h0 | [mm] | 180 | 230 | 275 | 330 | 405 |
| Diagonal Hole Diameter | dr | [mm] | 22 | 28 | 33 | 43 | 54 |
| Diagonal Hole Depth | hr | [mm] | 240 | 305 | 370 | 440 | 545 |
| Diameter Fixture Hole | df | [mm] | 16 | 20 | 25 | 28 | 35 |
| Fixture Height | tfix≤ | [mm] | 35 | 45 | 55 | 55 | 55 |
| Recommended Torque | Tinst | [Nm] | 45 | 110 | 210 | 370 | 730 |
