VDP Quartz M16/1.5t

VDP Quartz M16/1.5t

VDP Quartz M16/1.5t

VDP Quartz M16/1.5t

VDP Quartz M16/1.5t

VDP Quartz M16/1.5t

€ 44,40 excl. VAT

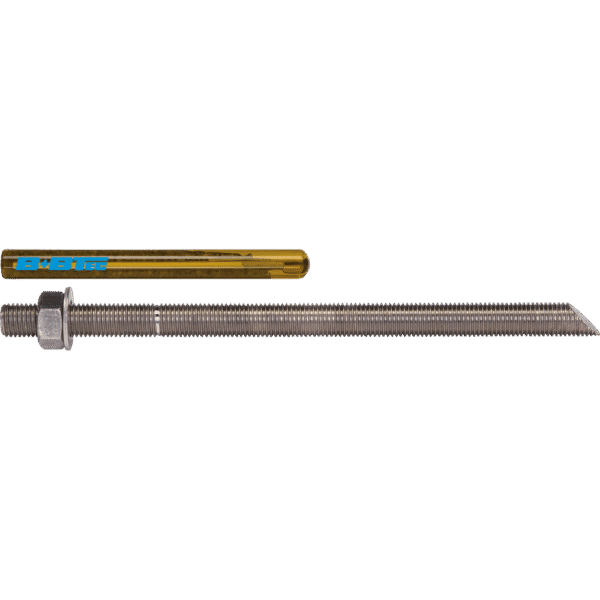

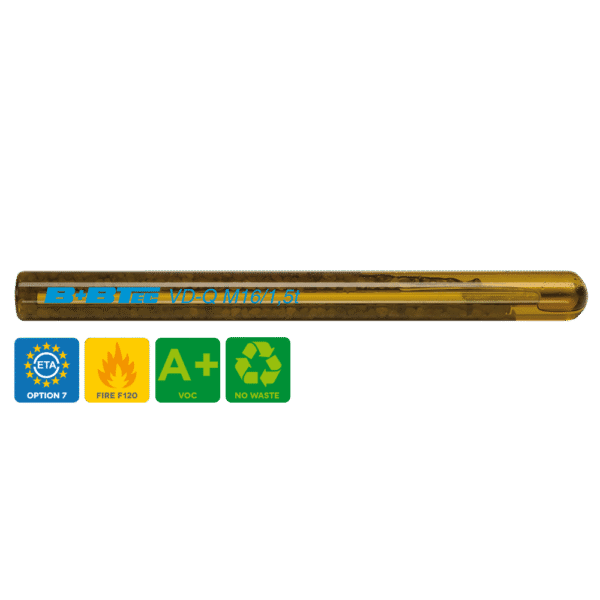

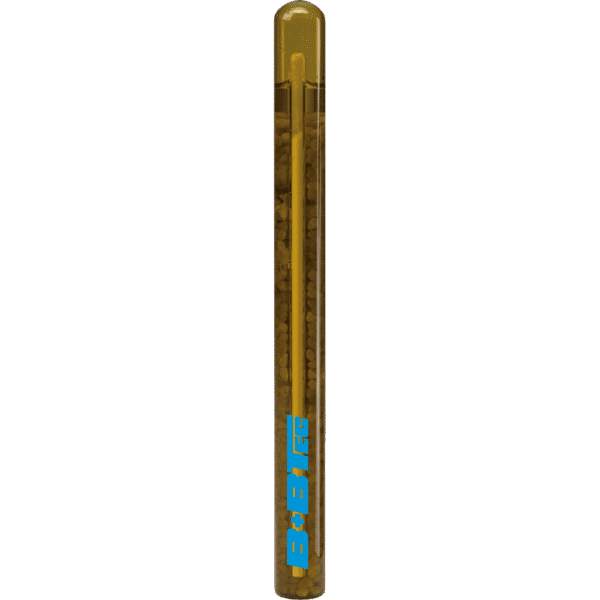

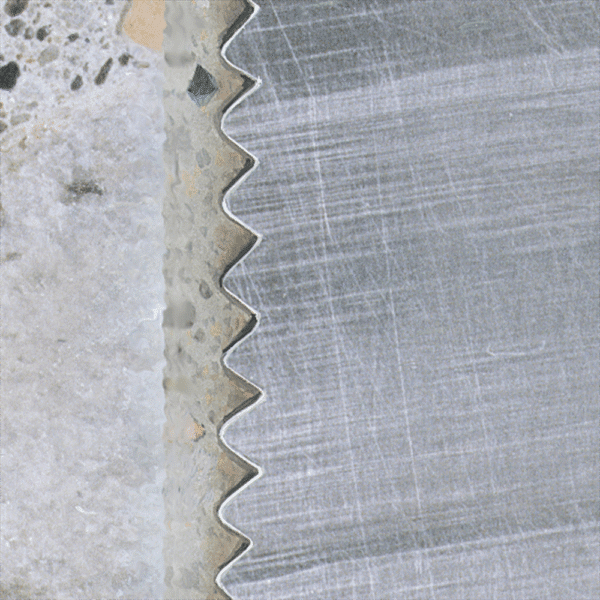

Glass capsule ETA Option 1 for fixing anchor rods

In stock

Need a larger quantity or working on a bigger project? Vraag een offerte aan.

Secure payment via

SKU: 3900317VEAN 8714345154343 Categories: Anchoring, Chemical anchors, Glass capsule anchors, Wire nails Verpakkingseenheid: 10 stuks

Description
Additional information

Installation Procedures

Product Dimensions

Anchor dimensions	Yes	[mm]	M12	M16	M20	M24
Anchor Rod Length	La	[mm]	210	250	325	400
Capsule Type	VDP-Q		M12/1.5t	M16/1.5t	M20/1.5t	M24/1.5t
Capsule Diameter	DP	[mm]	13	17	17	22
Capsule Length	LP	[mm]	125	125	255	245
Volume Capsule	Vice President	[cc]	12,6	22,3	46,0	76,2
Required Volume/cm	Versus	[cc/cm]	0,75	1,09	1,52	2,01
Steel Brush Diameter	D	[mm]	16	20	24	28
Min. Brush Diameter	D minor	[mm]	14,5	18,5	18,5	26,5

Installation Dimensions

Anchor dimensions	Yes	[mm]	M12	M16	M20	M24
Drill hole diameter	D0	[mm]	14	18	22	26
depth of draught	h0=hef	[mm]	165	190	255	315
Hole diameter	df	[mm]	14	18	22	26
Retention height	tfix≤	[mm]	30	40	50	60
Recommended Tightening Torque	Tin	Newton metre	40	80	120	180

Element thickness, edge and centre-to-centre distances

Anchor dimensions	Yes	[mm]	M12	M16	M20	M24
Minimum element thickness	hmin	[mm]	195	225	300	370
Min. distance	C minor	[mm]	55	65	85	105
Min. Heart to heart distance	Smin	[mm]	55	65	85	105

Curing times

Concrete Temperature	Min. Curing Time in Dry Boreholes	Min. Curing Time in Damp Drill Holes
Above +0°C	5 hours	10 hours
Greater than or equal to 5 degrees Celsius	1 hour	2 hours
Above 20°C	20 mins	40 minutes
Over 30°C	10 minutes	20 mins

Weight	1,000000 kg
