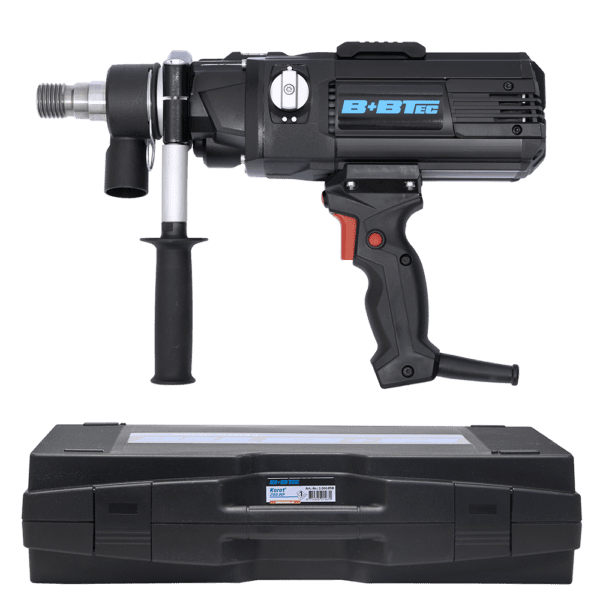

Karat® 200MP

€ 1.678,00 excl. VAT

The Karat® 200MP is the latest generation of micro-percussion dry drilling machine, designed for maximum performance in a dust-free working environment. The Karat® 200MP ensures extremely high dry drilling speeds. Thanks to the innovative micro-percussion and extraction system, you can work faster and cleaner.

In stock

Need a larger quantity or working on a bigger project? request a quote.

Secure payment via
SKU: 2000058K Categories: , , , , , Brand:

Karat® 200MP – Dry Drilling Machine for Diamond Drilling

This 2400W core drilling machine is suitable for dry drilling up to Ø202 mm, both handheld and in combination with a drill stand Compact or Large and slide Karat 180. Ideal for professional use thanks to its ergonomic handle and smart design.

The machine features two mechanical gears for optimal power and speed, tailored to every application. The RGB indicator light provides real-time feedback on the drilling status – your visual assistant during work.

Features

  • Optimal percussion frequency and impact force for high drilling speed
  • Suitable for dry drilling by hand or with a stand
  • Ergonomically balanced handle for reduced fatigue and increased precision
  • Powerful 2400W motor
  • Drilling diameter up to Ø202 mm
  • Two mechanical gears for adjustable drilling speed
  • RGB LED indicator for real-time drilling status
  • Data reading and logging for professional insights
  • Soft Start for controlled operation
  • Modular design, expandable with accessories
  • 1¼" drill spindle compatible with standard dry core bits
  • Machine mount for slide Ø60 mm

Compatible Diamond Core Bits

For the best results, we recommend using this machine in combination with our professional DrySpeed Ultra diamond core bits. Available in various diameters and suitable for a wide range of applications.

This drilling machine is suitable for:

  • Dry drilling of penetrations in concrete, masonry, and stone for cables, conduits, and pipes
  • Drilling in environments where water is not allowed
  • Installation drilling for plumbing and heating systems
  • Drilling openings for ventilation and air extraction

Complete with

  • Karat® 200MP Core Drill
  • 360˚ Side Handle
  • Plastic Carrying Case
  • Tool Set
  • Operating Manuals

Advantages of using a dry drilling machine with micro percussion function

  • Clean operation without water or dust in concrete and other hard materials
  • Efficient drilling in reinforced concrete thanks to the powerful 2400W motor with diamond dry core bit
  • Drilling indoors where water use is undesirable, e.g., finished spaces, offices

Technical specifications

Bit RangeHand-held drilling in concrete:Ø30 - 102 mm
 Drilling with drill stand in concrete:Ø30 - 152 mm
 Hand-held drilling in masonry:Ø30 - 202 mm
Diamond Core BitsDrySpeed Dry Drilling:
 Standard Bit Lengths:150 - 450 mm
 Max. drilling length with drill stand:500 mm
Speed Setting (Dry)Level 1:Ø30 - 82 mm
 Level 2:Ø82 - 202 mm
MotorPower:2.400 W
 Voltage:230 V
 Frequency:50 Hz
 Spindle Threading:1¼"
 Gearing2-lap
 Revolutions per minute (no load):1050 / 2060 rpm
Dimensions & WeightDimensions L x W x H:440 x 112 x 295 mm
 Weight:6.8 kg
Safety featuresRGB LED Motor Overload Indication | Pulse™ Electronic Motor Protection System
Electronic and mechanical slip clutch | PRCD Switch
