CS 17-E
Stainless Steel Wire Saw System, complete (excl. diamond wire)
Features
- 17 kW (Peak 22 kW) continuous power at 32A
- Essential stainless steel components for easy maintenance and durability
- Smooth adjustment of the cable speed from the control panel
- Saw advance tension is easily adjustable for optimal sawing performance
- Water supply ON/OFF to be operated from control panel
- Diamond cable (available separately/optional)
Applications
- Dismantling of structural components (bridges, chimneys, foundations)
- Saw through everything from heavily reinforced concrete to thick masonry
- Structural adaptation of constructions, saws openings of various shapes
Prijs op aanvraag
Vraag vrijblijvend een offerte aan. We nemen doorgaans snel contact met je op.
Offerte aanvragenFeatures
- 17 kW (Peak 22 kW) continuous power at 32A
- Essential stainless steel components for easy maintenance and durability
- Smooth adjustment of the cable speed from the control panel
- Saw advance tension is easily adjustable for optimal sawing performance
- Water supply ON/OFF to be operated from control panel
- Diamond cable (Available separately/Optional)
Applications
- Dismantling of structural components (bridges, chimneys, foundations)
- Saw through everything from heavily reinforced concrete to thick masonry
- Structural adaptation of constructions, saws openings of various shapes
Technical Data
| Power | kilowatts | 17 (22 weeks) |
| Voltage | [V] | 380 – 500 |
| Frequency | [Hz] | 50/60 |
| Amperage | [A] | 32 |
| Cable speed | m/s | 0 – 24 |
| Cable storage capacity | [m] | 7,5 |
| Minimum storage temperature | [Degrees Celsius] | 1 |
| Water connection | [Inch] | 1/2 |
| Sound pressure level | [dB(A)] | 75 |
| Min. Cooling water supply | litres per minute | 5 |
| Min. cooling water temperature | [Degrees Celsius] | +10 |
| Dimensions (L x W x H) | [mm] | 1500 x 860 x 880 |
| Weight | [kg] | 355 |
Complete with:
- Stainless Steel Wire Saw System CS17-E
- Stainless steel control panel
- 2 pieces of anchoring tools
- Mains cable 6 m.
- 2 x Water hose 8 mtr.
- 2 x Wheel Watering Sprinklers
- 2 x Double guide wheels on stand
- User Manuals
Available Accessories
| Art. No. | Description | EAN | VE |
| 2100009 | Anchoring tool | 8714345000848 | 2 |
| 1000203 | Drive wheel | 8714345196237 | 1 |
| 1000204 | Small Cassette Wheel | 8714345196244 | 1 |
| 1000205 | Cassette Wheel Large | 8714345196251 | 1 |
| 1000206 | Mains cable 6 m. | 8714345196268 | 1 |
| 1000207 | 8 m water hose. | 8714345196275 | 2 |
| 1000208 | Wheel washer | 8714345196282 | 2 |
| 1000209 | Double guide wheels on stand | 8714345196299 | 2 |
| 1000210 | Guide wheel | 8714345196305 | 1 |

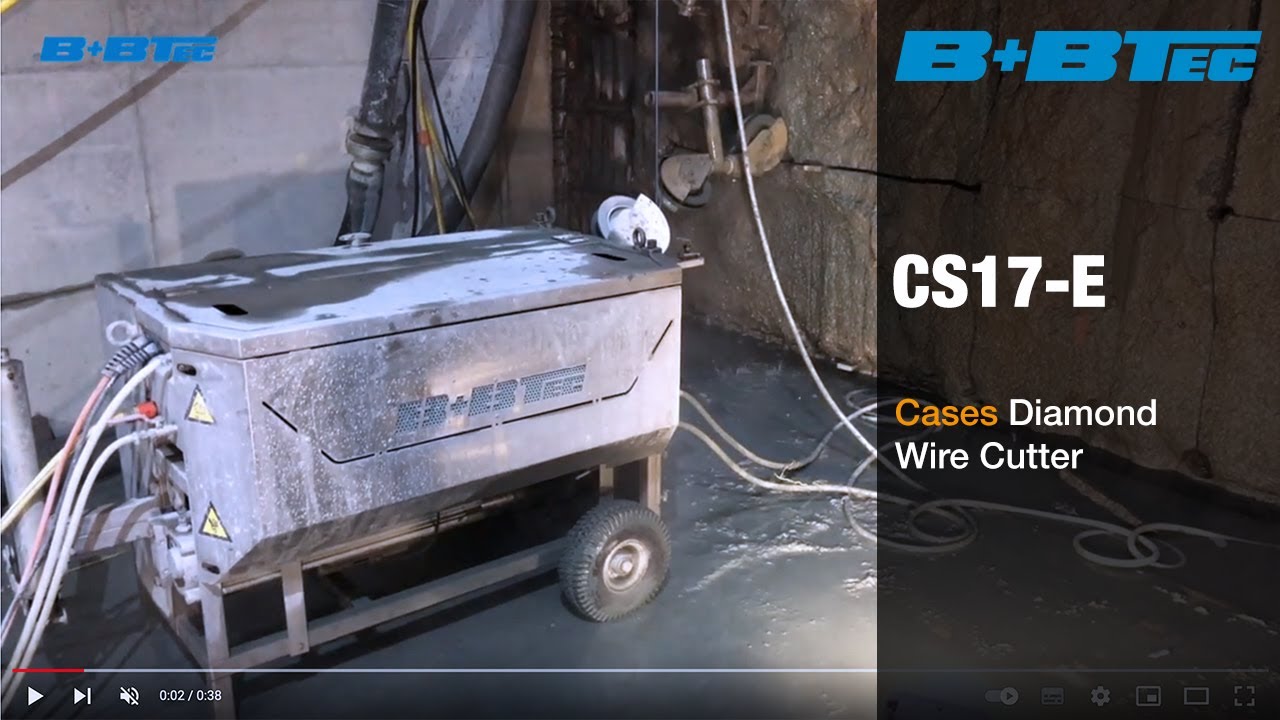

Video's
