DRILLING + FIXING TECHNOLOGY WITH A BIG PLUS! WITH A BIG PLUS!

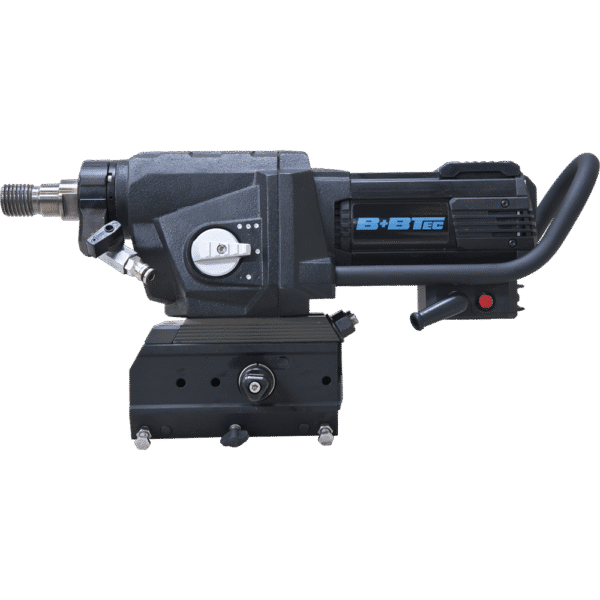

Karat® 350 Motor with Quick Release Slide
€ 3.800,00 excl. VAT
- 3200W Drill Motor and Quick Release Slide 230V-50/60 Hz – 1¼” drill spindle
- Gearbox: 3 drill speeds
- Including slide
In stock
Need a larger quantity or working on a bigger project? Vraag een offerte aan.
Features
- Versatile: Drill wet or dry on a drill stand
- Even more powerful 3200W motor
- Larger hole drilling range up to Ø350 mm
- Click-n-Drill Quick-change Guide
- Latest Generation RGB LEDs
- Soft Start
- New Electronic Slip Clutch
- New Design Mechanical Slip Coupling of specially developed steel
- 360° Rotating Water Connection with Water Flow Indicator
- Data Read Option
- Modular Design
- 1¼” Booras
Technical specifications
| Scope | Optimised in Reinforced Concrete | Ø40 - 300 mm |
| Maximum in Reinforced Concrete | Ø25 - 350 mm | |
| Diamond Core Drills | HiSpeed Crown Bits | HiSpeed Segmented Bits | DrySpeed Segmented Bits | |
| Standard Drill Lengths | 300 - 400 mm | |
| Max. bore length: | 620 mm | |
| Drill speeds | Stand 1 Natural/Dry | Ø160-350 / 202-350 mm |
| Stand 2 Dry/Wet | Ø80-160 / 102-202 mm | |
| Stand 3 Natural/Dry | 25-80 / 56-102 mm diameter | |
| Motor | Power: | 3.200 W |
| Voltage | 230 V | |
| Frequency | 50/60 Hz | |
| Booraansluiting | 1¼" | |
| Gear drive | 3 Speeds | |
| Revolutions per minute | 385 - 820 - 1200 rpm | |
| GWeight | Weight: | 17.9 kg |
| Safety features | RGB LED Motor Overload Indication | Pulse™ Electronic Motor Protection System | Electronic Slip Clutch | PRCD Switch | Water Flow Indication | |
